My VSAN journey – Part 2 – How-to delete partitions to prepare disks for VSAN if the disks aren’t clean

In part one of My VSAN journey I outlined the possibility to “clean” your disks if they were previously installed with VSAN or had partitions of different OS on it. You could also see my thought on going cheap on a homelab VSAN nodes with a Haswell low power node. As I was the part of the beta of VSAN and no migration path was proposed, the only way to install VSAN GA product was to wipe the beta. The easy way consisted of just quickly create new VMFS file system on each disk and then delete this partition.

However when completely re-installing my home VSAN installation recently I wasn't able to do that and I had to follow the VMware KB the “hard” way. I say the hard way as you need to remember the CLI commands. That's why this post – to remember and to learn more.

In my case I had a difficulty to create disk group for VSAN where my SSD wasn't showing as available, even though the SSD was there attached and worked well during the VSAN beta.

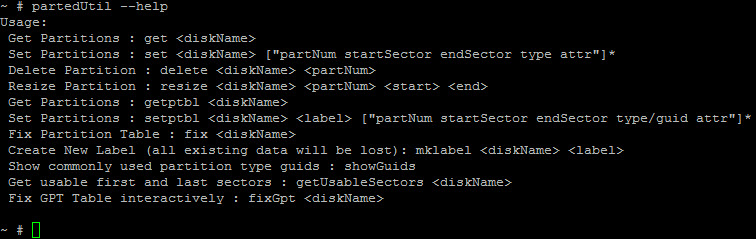

You'll be using partedUtil command line utility. Quickly typing for help:

partedUtil –help

gives you the the different possibilities.

I had my SSD not showing. So at first I had to check the disk ID with:

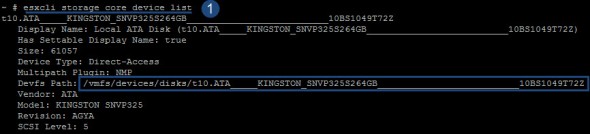

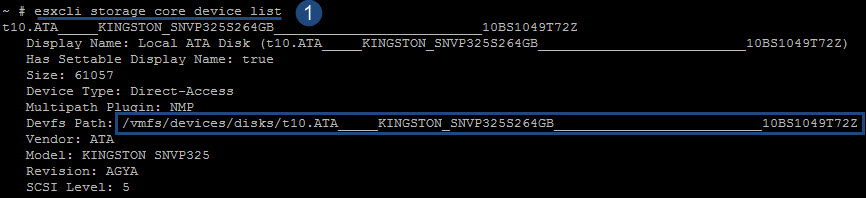

esxcli storage core device list

See here:

And then use the partedUtil utility with this command:

partedUtil getptbl “/vmfs/devices/disks/DeviceName”

so in my case:

partedUtil getptbl “/vmfs/devices/disks/DeviceName”

Got me an output like this – a blank disk.

Note: I managed actually to create a datastore via the GUI, but by creating VMFS 3 based datastore when fiddling around with the GUI. That's why through the screenshot you see the disk is blank as I actually managed to delete this VMFS 3 datastore afterwards without problems – via the GUI.

We could stop this excercise here, but for the sake of documentation, I'd like to document the procedure until the end as If I was doing it only through the CLI.

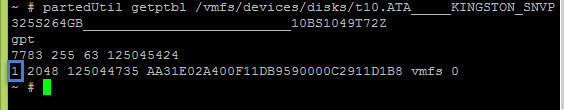

We need to have a partition number in order to be able to delete the partition through the CLI. The command shows that in my case the partition number is 1. I had created a VMFS 3 datastore.

So to delete this partition via partedUtil utility you'll be using this command:

partedUtil delete “/vmfs/devices/disks/DeviceName” PartitionNumber

So in my case:

Remember there is no way to go back and VMware warns you…

Caution: There is no facility to undo a partition table change other than creating a new partition table. Ensure that you have a backup before making any change. Ensure that there is no active I/O to a partition before modifying it.

The command did not returned anything (that's what I like), so it's success…

VMware VSAN and vSphere 5.5 Update 1 were released as GA just few weeks ago. If you have missed this announcement, check out those posts:

• VMware Virtual SAN (VSAN) 1.0 GA – FAQ, Pricing and Design Options
• VMware vSphere 5.5 Update 1 Released

VSAN ready nodes were also recently updated so If you work with a particular vendor, you might want to check out this page where you can see the VSAN Ready Nodes. At the times of writing there were three vendors – Cisco, Dell and Fujitsu. But the list will get longer…

Links and sources:

• VMware KB on this – Using the partedUtil command line utility on ESXi and ESX
• Manually creating a VMFS volume using vmkfstools -C
