If you're new to VMware or still learning, gaining experience this post might be your interest as I'll be talking about ESXi 6.0 downgrade options but also about the possibility to downgrade VMware infrastructure as a whole. It's not something that cannot be done, but some preparations must be done previously in order to be able to revert back to for example vSphere 5.5 version (or to 6.5 version if you have upgraded to 6.7), if that was the version you were running before your upgrade.
Reasons to revert back might be various – testing, lab, non-production clusters, learning experience etc etc… By now you should master the different ways of upgrading VMware ESXi and vCenter server. I have detailed it through few posts from the lab where you could learn how to do it through CLI, through a physical CD (if the server has CD/DVD drive) or via VMware Update manager (VUM). You can find those posts here:
- Patch ESXi 5.5 to ESXi 6.0 – Lab Time (via vSphere Upgrade bundle OR via ISO)
- Upgrade ESXi with VMware Update Manager (VUM)
vCenter server upgrade (VCSA based):
Note you can also take granular backups of vCenter DB:
- vSphere 6 – How To Backup vCenter 6 vPostgres Database On Windows
- How to backup and restore vPostgres database on VCSA 6
The way to revert back to previous release is fairly easy for ESXi hosts. Let's say you have patched ESXi 5.5 to ESXi 6.0 and now you want to revert back.
Steps for ESXi Downgrade:
Step 1: During the boot sequence (after the BIOS init) hit Shift + R (Recovery mode).
Step 2: You have the option to validate that you want to go back to the previous version (the version from which you were upgrading). You can hit Y to confirm…
That's all. The server will boot the previous version – (5.5 in our example), the next boot. Note that you won't have the option to boot ESXi 6.0 anymore….
vCenter Server Downgrade options
If you have successfully migrated from vCenter Server 5.5 to vCenter server 6.0 the downgrade is not necessary if you have let's say some compatibility problems on your hosts. You can manage your hosts running ESXi 5.5 via vCenter 6.0.
If you still planning reverting back you have to think of it before upgrading. You need to backup or snapshot your vCenter server before you starting your upgrade to vCenter 6. Once you have your backup or snapshot, two options. Those option can possibly be used the way to keep a possibility for you that you might want to still having option, to fast forward and be on the v 6.0 vCenter server at later time):
Option 1. Stop your vCenter server 6 > restore your vCenter server 5.5 via your backup software (you must give the VM a different name). Usually the backup products allows to restore vCenter if this isn't available (VDP does it, Veeam does it….)
Option 2. I assume that you took a snapshot of your vCenter Server. Create a clone of your vCenter server, so you will keep the possibility to use this VM for v 6.0 > Revert the snapshot you took before the upgrade.

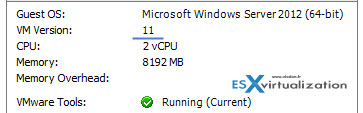

What if I already upgraded some VMs to virtual hardware 11 (vmx-11)?
What if I already upgraded some VMs to virtual hardware 11 (vmx-11)?Well, in this case, depending if you have took a snapshot of your VM before you have upgraded to the vmx-11, you can revert back, but in fact there are 3 possible options:
1. Snapshot – You can revert back in case you took a snapshot before you upgraded the virtual machine hardware. Well this obviously not work if the VM has already been created in for example vmx-10 and you only want vmx-8….

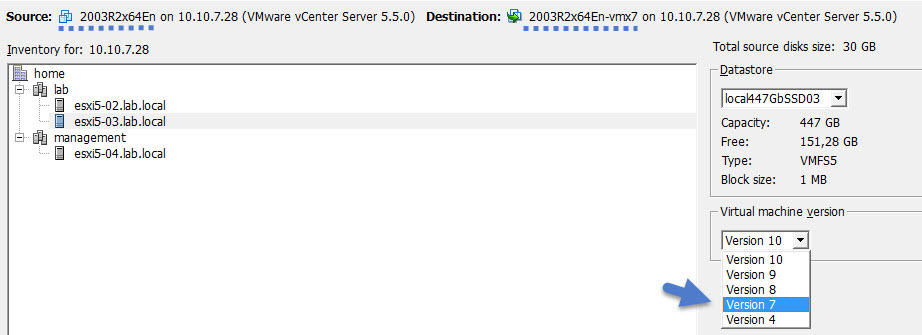

2. Convert the VM – with VMware converter you have a possibility to specify which virtual hardware you want for the destination VM. Easy and without a risk as it's a cloning operation which does not alter the source disks.
3. Create New VM – You can create new VM with let's say C# client and specify for example virtual hardware version 8. Then attach the existing virtual disk to that VM. Yes it's supported way, according to this VMware KB article.
Then there are some unsupported ways to change the virtual hardware by editing the vmx file, but I won't list those, as it's unsupported.
Wrap up:
This is only the tip of the iceberg, as there might also be product incompatibility version involved as well. Let's say you run SRM, vCloud Director, vSphere Replication…. It's certainly worth to think twice before starting to upgrade your virtual infrastructure.
I'm not fan of upgrading and usually wait quite a time, then (if I have time) start to gather documentation, compatibility options. Dependency with other products I run at the client's side. Backup software… You get the picture.
