In small environments usually with an “All-in-one” server or with Remote Office Branch Office (ROBO) locations, the question of resiliency often comes. What if my server loses a hard drive (SSD drive) or a whole RAID card? What if my CPU burns or what if my Power Supply Unit (PSU) dies? Anything can happen. Even if modern hardware is more reliable, there are still breakdowns and failures. To stay resilient with a minimum number of pieces of hardware, one of the best design scenarios is a scenario with 2 nodes only, where those two hosts provide your shared storage by creating a “Mirror” and the solution used for this scenario comes from StarWind VSAN software.
If you opt for a low-cost NAS device, it is still another piece of hardware that can fail, and all your VMs stored there will most likely be unavailable. The NAS device also has a CPU, Memory, or Motherboard. And all those components can fail. If that happens, the whole NAS device stops providing the function it has been designed for – shared storage. All your VMs are down, and your users are impacted.
If you have two hosts that participate in shared storage (and compute of course) then you mitigate the risk of failure. If one of your hosts goes down (Motherboard fried, CPU dead, Memory error…..) the other host still provides the shared storage. It gives you time to investigate the issue, replace the faulty hardware, and start the server again. Users are not impacted.
5 Easy Steps to Be More Resilient with Two Hosts
There is a cool video from StarWind that walks you through the steps and I'll link it at the end of the article.
Step 1: Checking the system meets the cluster requirements

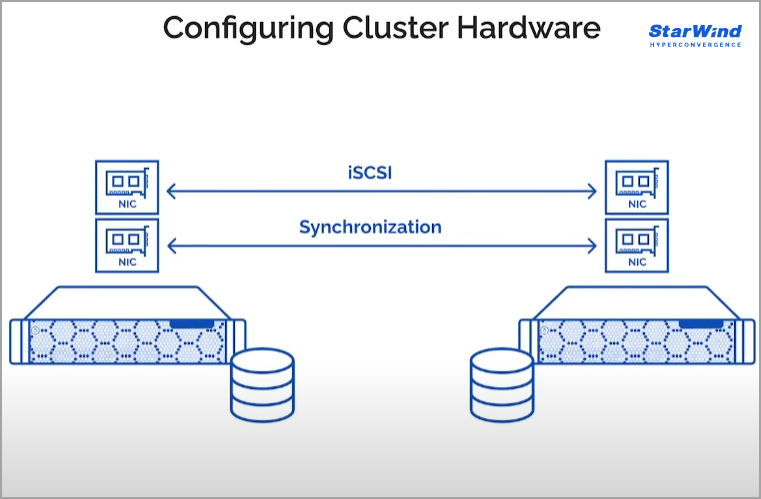

Important to have a hardware that match the specifications so there will be no bottlenecks within the storage, network or CPU layer. You should make sure that you have dedicated NICs available for each necessary role (synchronization, iSCSI etc….).

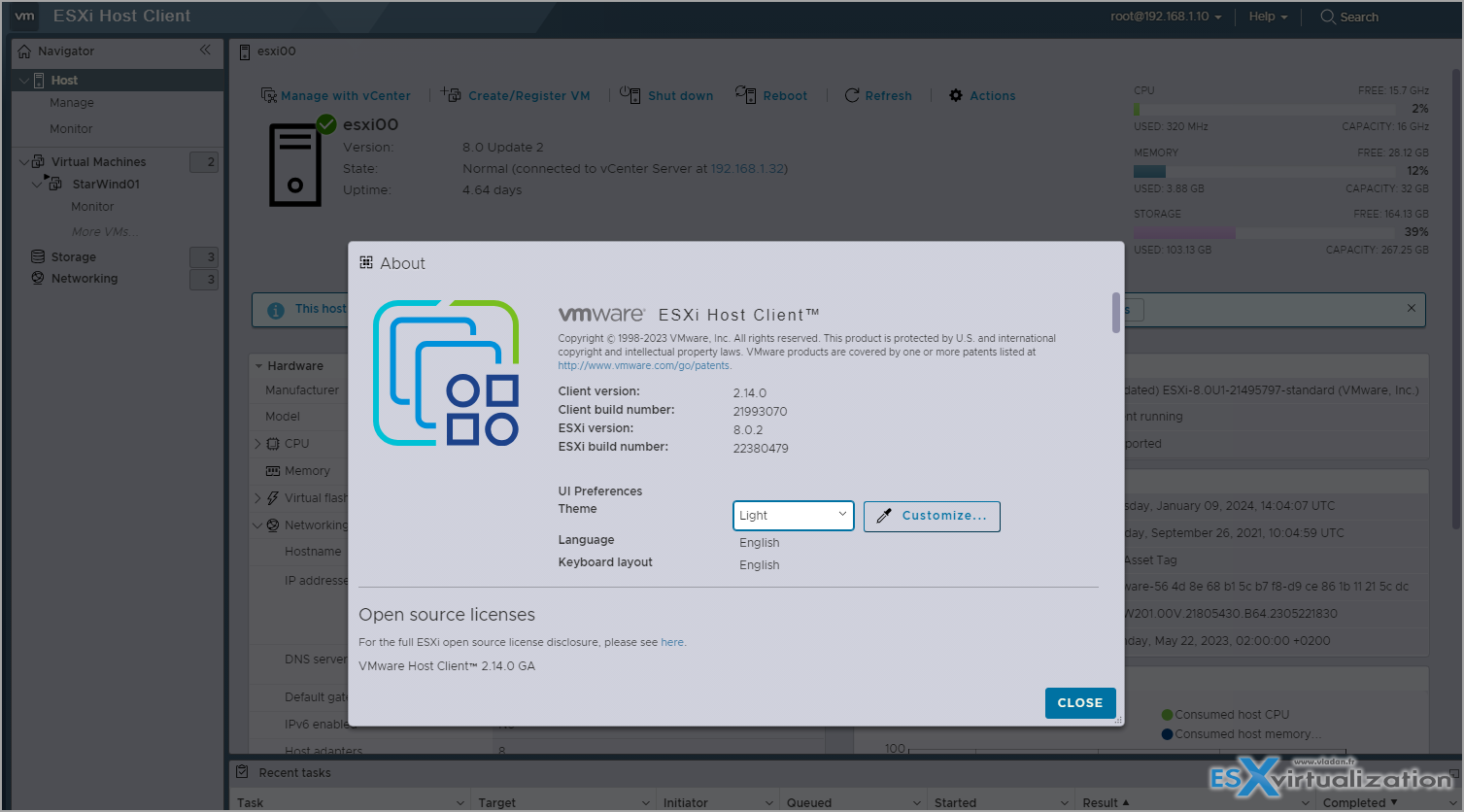

Step 2: Deploy the VMware ESXi with vCenter Server or Hyper-V on both on both nodes within the cluster, with the proper licensing. For example, if you plan to use High Availability (HA) where VMs are restarted on remaining node, then you must run at least vSphere Essentials Plus license.

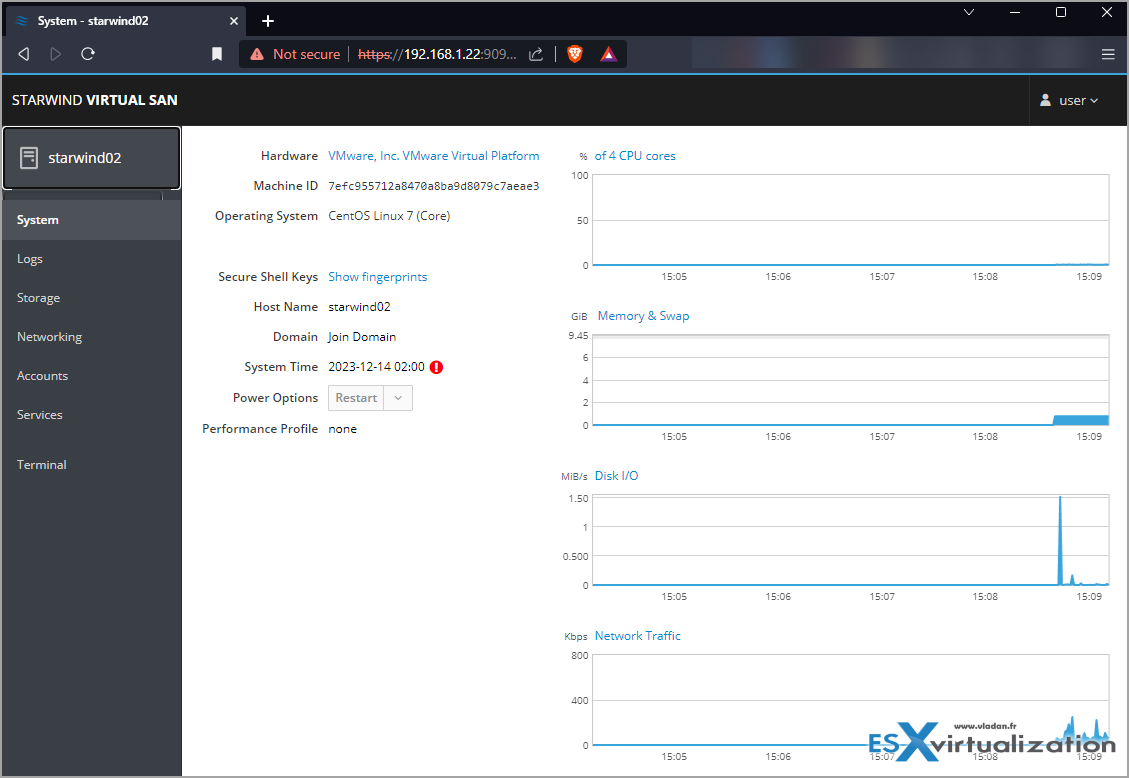

Step 3: Deploy and configure StarWind VSAN VM on each node. StarWind uses cockpit GUI for the configuration which makes the configs easy. Cockpit allows you to do base configs of your Linux server without knowing text-based commands and it’s very lightweight. You can manage storage, networking, services, users and more.
By default, Cockpit uses your system’s normal user logins and privileges. Network-wide logins are also supported through single-sign-on and other authentication techniques.
Cockpit is a web-based graphical interface for Linux servers and is intended primarily for those who do not work with Linux on a daily basis to remember manual commands. Cockpit enables basic Linux administration, such as:
- Network settings
- Firewall settings
- Enable / disable system services
- Disk space management
- Scan system logs
- System hardware control
- Software update
- System resource utilization overview
- Use the server terminal in the web window
Using Cockpit is particularly interesting on servers without SSH access enabled. All you need to access the Linux server is a web browser with port 9090.

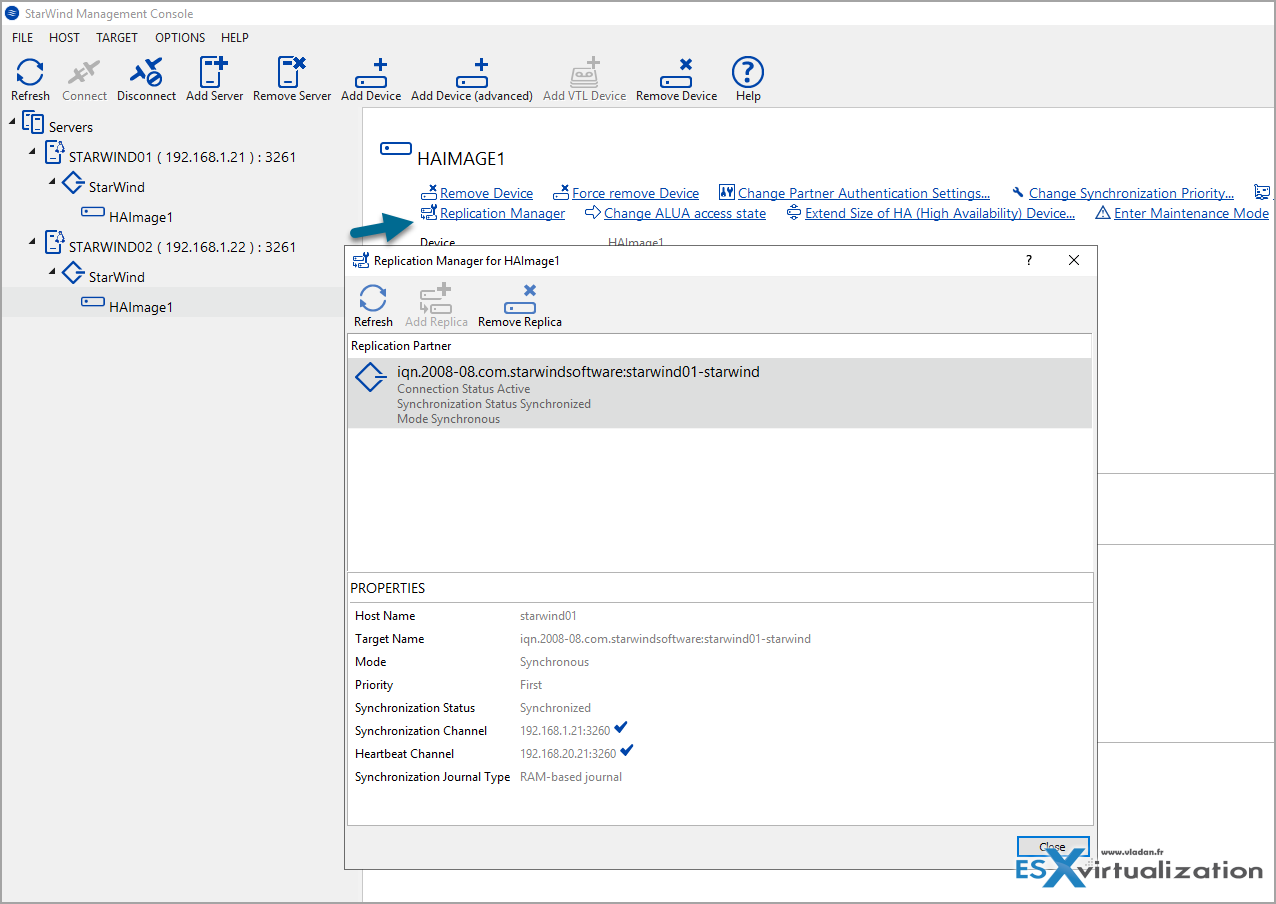

Step 4: Configure StarWind HA storage. Create and mount the storage, then by using StarWind console, initiate the replication via the StarWind replication manager, replicate the storage to the second node and create HA shared storage for your vSphere or Hyper-V environment.

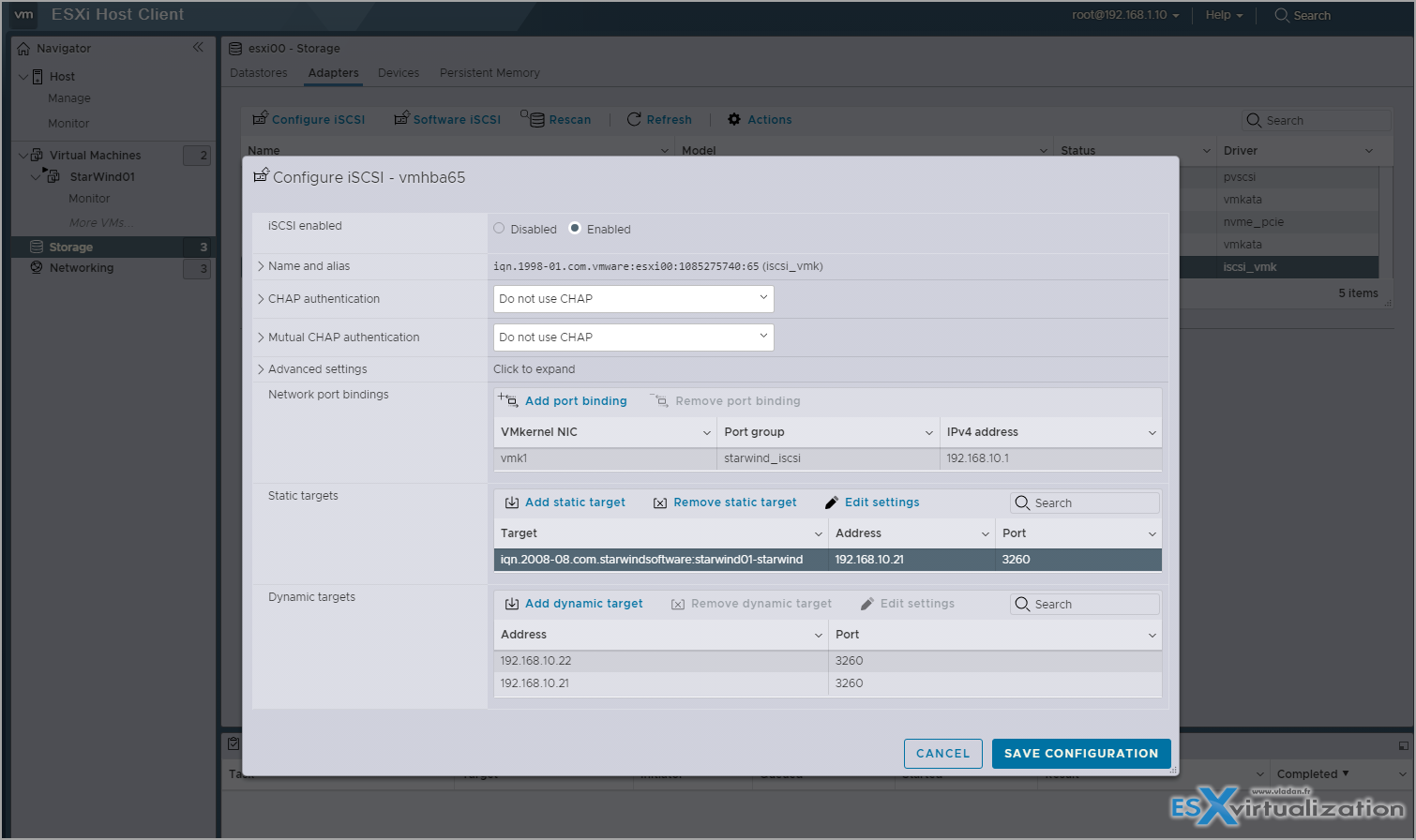

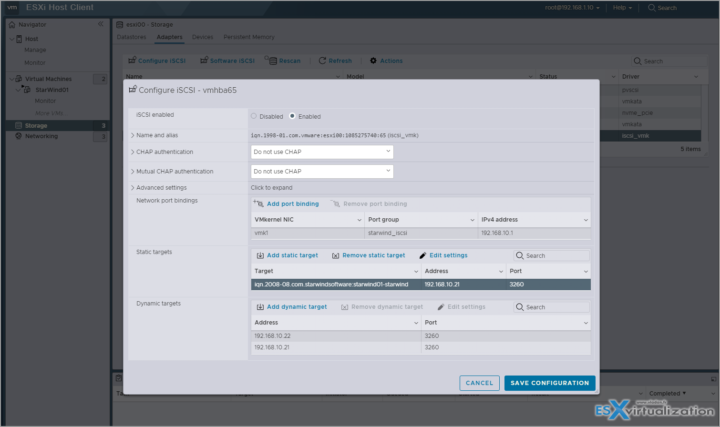

Step 5: Present StarWind HA storage to your ESXi host via an iSCSI protocol, which is industry standar storage protocol.
For detailed setup and step-by-step, check here at StarWind website.
You can watch the overview video here.
